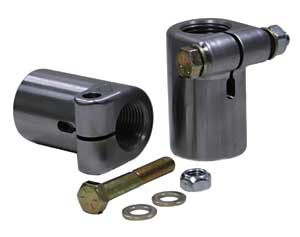

Rod End Receivers
  • Material Specs: 4140 N Chromoly Steel
  • Includes Grade 8 Bolt, metal locknut and 2 AN washers
  • Welds into stock tubing sizes
  • Cinch bolt maintains high clamping force

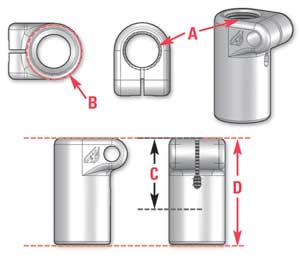

ROUND

ROUND DWG

Round Rod End Receivers
RH
THREAD
PART
NO.
LH
THREAD
PART
NO.
CADbuttonTechnical
Data Sheet
CADbuttonCAD Model
(Parasolid)
 THREAD SIZE (A)

NOMINAL TUBE SIZE
RECOMMENDED TUBE WALL THICKNESS
15120 Data Sheet
15125 Data Sheet
1/2" - 20 / .875" OD / 0.065"
15110 Data Sheet
15115 Data Sheet
5/8" - 18 / 1.000" OD / 0.065"
15100 Data Sheet
15105 Data Sheet
3/4" - 16 / 1.250" OD / 0.065"
15090 Data Sheet
15095 Data Sheet
7/8" - 14 / 1.500" OD / 0.065"
15080 Data Sheet
15085 Data Sheet
1 1/4" - 12 / 2.000" OD / 0.065"
15092 Data Sheet
15097 Data Sheet
7/8" - 14 / 1.500" OD / 0.120"
15082 Data Sheet
15087 Data Sheet
1 1/4" - 12 / 2.000" OD / 0.120"

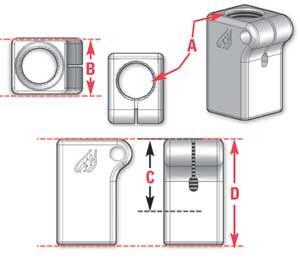

square

square drawing

Square Rod End Receivers
 PART NO.
THREAD SIZE (A)
WIDTH (B)
CADbuttonTechnical
Data Sheet
CADbuttonCAD Model
(Parasolid)
1/2" - 20
.688" OD
15170 Data Sheet 15170 CAD Model
5/8" - 18
.875" OD
15160 Data Sheet 15160 CAD Model
3/4" - 16
1.063" OD
15150 Data Sheet 15150 CAD Model
7/8" - 14
1.250" OD
15140 Data Sheet 15140 CAD Model
1 1/4" - 12
1.813" OD
15130 Data Sheet 15130 CAD Model



Weld In Bungs
Weld In Bungs

rod endrod end

PART NO.
DESCRIPTION SIZE TUBE ID (A) BUNG WIDTH (B) BUNG LENGTH (C) CADbuttonTechnical
Data Sheet
CADbuttonCAD Model
(Parasolid)
Weld In Bung RH
1/2"-20
.75"
1.00"
.75"
15300 CAD Model
(coming soon)
Weld In Bung LH
1/2"-20 .75"
1.00"
.75"
15301 CAD Model
(coming soon)
Weld In Bung RH
3/4"-16 1.00" 1.25" 1.125" 15302 Data Sheet 15302 CAD Model
(coming soon)
Weld In Bung LH
3/4"-16 1.00" 1.25"  1.125"  15303 Data Sheet 15303 CAD Model
(coming soon)
Weld In Bung RH
1"-14 1.50"  1.75"  1.50"  15304 Data Sheet 15304 CAD Model
(coming soon)
Weld In Bung LH
1"-14  1.50" 1.75" 1.50"  15305 Data Sheet 15305 CAD Model
(coming soon)
Weld In Bung RH
1-1/4"-12 1.75"  2.00"  1.875"  15306 Data Sheet 15306 CAD Model
(coming soon)
15307 Weld In Bung LH   1-1/4"-12  1.75"  2.00"  1.875"  15307 Data Sheet 15307 CAD Model
(coming soon)
15308 Weld In Bung RH   M18 X 1.5 1.00"  1.25"  1.060"  15308 Data Sheet 15308 CAD Model
(coming soon)
15309 Weld In Bung LH   M18 X 1.5  1.00"  1.25"  1.060"  15309 Data Sheet 15309 CAD Model
(coming soon)

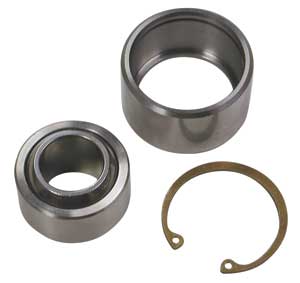

Spherical Bearings
Spherical Bearing Receivers
  • Material Specs: 4140 N Chromoly Steel
  • Includes retaining ring

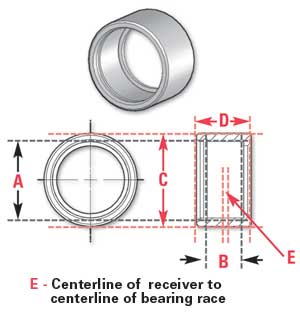

ROUND ROUND DWG

PART NO.
Bearing Diameter (A)
Bearing Race Width (B)
CADbuttonCAD Model
(Parasolid)
0.8125"
0.4060"
15065 CAD Model
1.0000"
0.5050"
15060 CAD Model
1.1875"
0.5670"
15055 CAD Model
1.3750"
0.6300"
15050 CAD Model
1.6250"
0.7550"
15045 CAD Model
2.1250"
1.0050"
15040 CAD Model
2.7500"
1.099"
15042 CAD Model

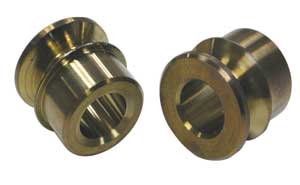

High Mis-Alignment Inserts
  • Material Specs: Hardened Stainless Steel
  • (Pair)

ROUND

ROUND DWG

PART NO.
Internal Diameter (B)
Stack Length (E)
Mis-Alignment Angle
CADbuttonCAD Model
(Parasolid)
0.375"
1.500"
21°
15032 CAD Model
0.500"
1.500"
24°
15028 CAD Model
0.500"
1.750"
30°
15015 CAD Model
0.500"
1.750"
30°
15020 CAD Model
0.625"
2.000"
30°
15018 CAD Model
0.625"
2.160"
30°
15010 CAD Model
0.750"
2.185"
28°
15012 CAD Model
0.625"
3.600"
29°
15024 CAD Model
0.750"
3.6250"
30°
15022 CAD Model
