Sealed Flex Joints

 xAxis Rod End Ball Joints 		  xAxis upright

xAxis Weld-In Receivers


xAxisCrossSection-separate
Features
  • Sealed joint retains grease and excludes contaminants
  • Highly polished electroless-nickel finish on ball maximizes durability
  • Up to 45° angularity for high mis-alignment requirements
  • Common sizes that builders, fabricators and racers need
Benefits
  • Reduced compliance and deflections vs rubber and poly joints
  • Improved durability vs spherical bearings and poly style bushings
  • Increased angularity compares to rubber and poly bushings
  • Precision engineered to be a direct fit for many popular street/race or HD and off-road applications
xAxisCrossSection-InnerBall   Electroless-nickel plated ball provides hard, smooth wear surface for long life.
xAxisCrossSection-NylonInnerSleeve
 Corrosion and wear resistant nylon race reduces compliance.

xAxisCrossSection-retainingrings

 Zinc plated retaining rings keep boot secure throughout full joint articulation.

xAxisCrossSection-rubberboots

 Easily replaceable rubber boots protect joint from elements.
xAxis upright

Sealed Flex Joints

PART NO.
BOLT SIZE (A)
WIDTH (B)
OUTSIDE
DIA. (C)
CADbuttonTechnical Data Sheet
CADbuttonCAD Model (Parasolid)
.375"
1.500"
1.250"
.500"
2.000"
1.750"
 15607 Data Sheet
.625"
2.500"
2.000"
 15609 Data Sheet
.750"
3.250"
2.500"
 15611 Data Sheet
10mm
2.000"
1.8125"
 15613 Data Sheet
12mm
2.000"
1.8125"
 15615 Data Sheet
14mm
2.375"
1.8125"
 15616 Data Sheet
14mm
1.625"
38.5mm
 15617 Data Sheet
14mm
2.625"
2.250"
 15619 Data Sheet
.640"
2.630"
2.251"
 15620 Data Sheet
12mm
40mm
40mm
 15623 Data Sheet
12mm
48mm
40mm
 15624 Data Sheet
10mm
40mm
1.750"
 15625 Data Sheet
12mm
42mm
40.2mm
 15627 Data Sheet
12mm
45mm
40mm
 15629 Data Sheet
12mm
47mm
40mm
 15631 Data Sheet
12mm
50mm
40mm
 15633 Data Sheet
12mm
50mm
40.2mm
 15635 Data Sheet
12mm
57mm
40mm
 15637 Data Sheet
14mm
40mm
40mm
 15639 Data Sheet
14mm
50mm
40mm
 15641 Data Sheet
12mm
44.5mm
40mm
 15643 Data Sheet
14mm
48mm
40mm
 15647 Data Sheet
18mm
60mm
50.8mm
15648 Data Sheet

xAxis™ ROD END BALL JOINTS

ill
PART NO. RIGHT THREAD PART NO. LEFT THREAD BOLT DIA
(A)		 WIDTH
(B)		 THREAD
(C)		 THREAD
LENGTH
(D)		 Suggested Application
CADbuttonTechnical
Data Sheet
CADbuttonCAD Model
(Parasolid)
15730 15731 10mm - 3/8" 2.000" 3/4" - 16 3.2" Aftermarket Jeep TJ upper control arms* 15730 Data Sheet
15731 Data Sheet		 15730 CAD Model
15731 CAD Model
15732 15733 12mm 2.000" 3/4" - 16 3.2" Aftermarket Jeep JK front upper control arms* 15732 Data Sheet
15733 Data Sheet		 15732 CAD Model
15733 CAD Model
15734 15735 14mm - 9/16" 2.375" 3/4" - 16 3.2" Aftermarket Jeep JK rear upper control arms* 15734 Data Sheet
15735 Data Sheet		 15734 CAD Model
15735 CAD Model
15736 15737 5/8" 2.625" 1"-14 3.2" Aftermarket Jeep TJ and JK lower control arms modified for 5/8”-16mm bracket bolts*  15736 Data Sheet
15737 Data Sheet		 15736 CAD Model
15737 CAD Model
15738 15739 5/8" 2.625" 1 1/4"-12 3.2" Heavy duty aftermarket Jeep TJ and JK lower control arms modified for 5/8”-16mm bracket bolts*  15738 Data Sheet
15739 Data Sheet 		 15738 CAD Model
15739 CAD Model
15740 15741 14mm - 9/16" 2.625" 1" - 14 3.2" Aftermarket Jeep TJ and JK lower control arms* 15740 Data Sheet
15741 Data Sheet		 15740 CAD Model
15741 CAD Model
15742 15743 9/16" 2.625" 1 1/4"-12 3.2" TJ and JK lower control arms*  15742 Data Sheet
15743 Data Sheet		 15742 CAD Model
15743 CAD Model
15744 15745 3/8" 1.5" 1/2"-20 2.9"   15744 Data Sheet
15745 Data Sheet 		 15744 CAD Model
15745 CAD Model
15746 15747 1/2" 2.0" 3/4"-16 3.0"   15746 Data Sheet
15747 Data Sheet 		 15746 CAD Model
15747 CAD Model
15748 15749 5/8" 2.5" 1 1/4"-12 2.8"   15748 Data Sheet
15749 Data Sheet 		 15748 CAD Model
15749 CAD Model
15750 15751 3/4" 3.250" 1-1/4" - 12 3.2"   15750 Data Sheet
15751 Data Sheet		 15750 CAD Model
15751 CAD Model
15752 15753 12mm 40mm 3/4"-16 2.9"   15752 Data Sheet
15753 Data Sheet		 15752 CAD Model
15753 CAD Model
15754 15755 12mm 40mm M18x1.5 2.9"   15754 Data Sheet
15755 Data Sheet 		 15754 CAD Model
15755 CAD Model
15764 15765 12mm 45mm 3/4"-16 2.9"   15764 Data Sheet
15765 Data Sheet		 15764 CAD Model
15765 CAD Model
15766 15767 12mm 45mm M18x1.5 2.9"   15766 Data Sheet
15767 Data Sheet 		 15766 CAD Model
15767 CAD Model
15768 15769 12mm 47mm 3/4"-16 2.9"   15768 Data Sheet
15769 Data Sheet 		 15768 CAD Model
15769 CAD Model
15770 15771 12mm 47mm M18x1.5 2.9"   15770 Data Sheet
15771 Data Sheet		 15770 CAD Model
15771 CAD Model
15772 15773 12mm 50mm 3/4"-16 2.9"   15772 Data Sheet
15773 Data Sheet 		 15772 CAD Model
15773 CAD Model
15774 15775 12mm 50mm M18x1.5 2.9"   15774 Data Sheet
15775 Data Sheet 		 15774 CAD Model
15775 CAD Model
15780 15781 12mm 57mm 3/4"-16 2.9"   15780 Data Sheet
15781 Data Sheet 		 15780 CAD Model
15781 CAD Model
15782 15783 12mm 57mm M18x1.5 2.9"   15782 Data Sheet
15783 Data Sheet		 15782 CAD Model
15783 CAD Model
15784 15785 14mm 40mm 3/4"-16 2.9"   15784 Data Sheet
15785 Data Sheet 		 15784 CAD Model
15785 CAD Model
15786 15787 14mm 40mm M18x1.5 2.9"   15786 Data Sheet
15787 Data Sheet 		 15786 CAD Model
15787 CAD Model
15792 15793 12mm 44.5mm 3/4"-16 2.9"   15792 Data Sheet
15793 Data Sheet 		 15792 CAD Model
15793 CAD Model
15794 15795 12mm 44.5mm M18x1.5 2.9"   15794 Data Sheet
15795 Data Sheet 		 15794 CAD Model
15795 CAD Model
xAxis upright

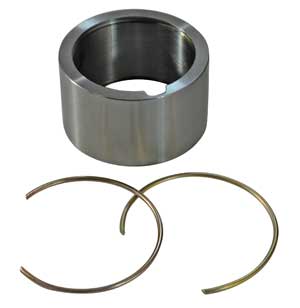

Weld-in Receivers with 2 Snap Rings

15520-26Base
PART NO.
OUTSIDE DIA. (A)
WIDTH (B)
INSIDE DIA.. (C)
PRESS ADAPTER
CADbuttonTechnical Data Sheet
CADbuttonCAD Model (Parasolid)
1.50"
0.82"
1.25"
29607
 15520 Data Sheet
2.25"
1.12"
1.75"
29608
 15521 Data Sheet
2.50"
1.25"
2.00"
29610
 15522 Data Sheet
3.00"
1.56"
2.50"
29612
 15523 Data Sheet
2.25"
1.07"
1.8125"
29609
 15524 Data Sheet
2.75"
1.57"
2.25"
29611
 15525 Data Sheet
47.6MM
27.3MM
40mm
29606
 15526 Data Sheet

*Fits aftermarket arms using common thread sizes

Looking for a size not listed? Contact Us with your requirements
