Heavy Duty
 |
|||
|

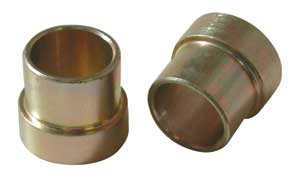

Wheel & Brake Drum Centering Sleeves
|
|
22mm Steer Wheel - Brake Drum Type
|
Dimensions
|
Aluminum Part Number
|
Steel Part Number
|
Quantity
|
|
Gunite: 3573X, 3596X, 3597X, 3598X, 3686X, 3687X, 3710X, 3721AX, 3726X, 3758X, 3774X, 3800X
Webb: 61528B, 65548B
Arvin Meritor: 53-123448-002, 53123567-002, 53123568-002
|
1.25" hole/.5"depth
|
6
|
||
|
Gunite: 9000X, 9001X, 9035X
Motor Wheel Centrifuse: 89870BK, 90089BK, 90174BK
Arvin Meritor: 53-123512-002, 53-123542-002
|
1.25" hole/.25" to .3125" depth
|
6
|
||
|
Conmet: 10009920
|
1.34" to 1.37" hole / .5" depth
|
6
|
||
|
Conmet: 107167, 107453, 107507, 107862, 10001781, 10001783, 10005331, 10005332
|
1.28" hole / .5" depth
|
6
|
||
|
Gunite: 3596BX, 3753AX, 3754AX
|
1.00" hole / .5" depth
|
N/A
|
6
|
 |
 |

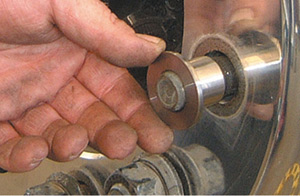

For steer and drive axles. This wheel centering sleeve slides over the studs and seats against the wheel face. This sleeve stays on the wheel and helps to reduce "wheel-off" condition. Sold in sets of 6 per axle. Zinc plated to resist corrosion.
|
|
Wheel Type
|
Stud Threads
|
Length Decimal
|
Length Fraction
|
Axle Position
|
Part Number
|
Quantity
|
|
Steel
|
22mm
|
.350"
|
23/64"
|
Steer |
6
|
|
|
Aluminum (see #33147 for smaller diameter sleeve)
|
22mm
|
.830"
|
53/64" | Steer |
6
|
|
|
Steel/Steel (see #33147 for smaller diameter sleeve)
|
22mm
|
.830"
|
53/64"
|
Drive |
6
|
|
|
Aluminum/Aluminum
|
22mm
|
1.560"
|
1-9/16"
|
Drive |
6
|
|
|
Aluminum/Steel
|
22mm
|
1.180"
|
1-3/16"
|
Drive |
6
|
|
| "Heavy Duty" Aluminum - Michelin X One, 14" wide |
22mm
|
1.100" | 1-7/64" | Drive | 33144 | 6 |
| "Heavy Duty" Steel - Michelin X One, 14" wid |
22mm
|
.600"
|
39/64" | Drive | 33145 | 6 |
| "Heavy Duty" Steel |
22mm
|
1.440"
|
1-7/16" | Steer & Drive | 33146 | 6 |
| Aluminum (.010 smaller diameter than #33141) |
22mm
|
.830"
|
53/64" | Steer | 33147 | 6 |
| Steel/Steel (.010 smaller diameter than #33141) |
22mm
|
.830"
|
53/64" | Drive | 33147 | 6 |
| Alum. Wheel & Brake Drum (cent. wheel & drum) |
22mm
|
1.310"
|
1-5/16" | Steer & Drive | 33148 | 6 |

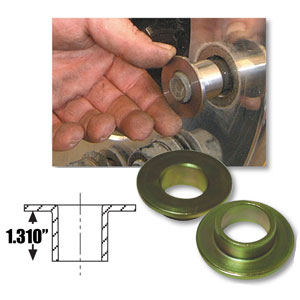

| Aluminum Gunite Brake Drums #s 3753AX, 3754AX, Freightliner FL60, FL70 & M2, 3596BX & others |
22mm
|
1.310"
|
1-5/16" | Steer | 33149 | 6 |
