15225 - CARTRIDGE BALL JOINT EA

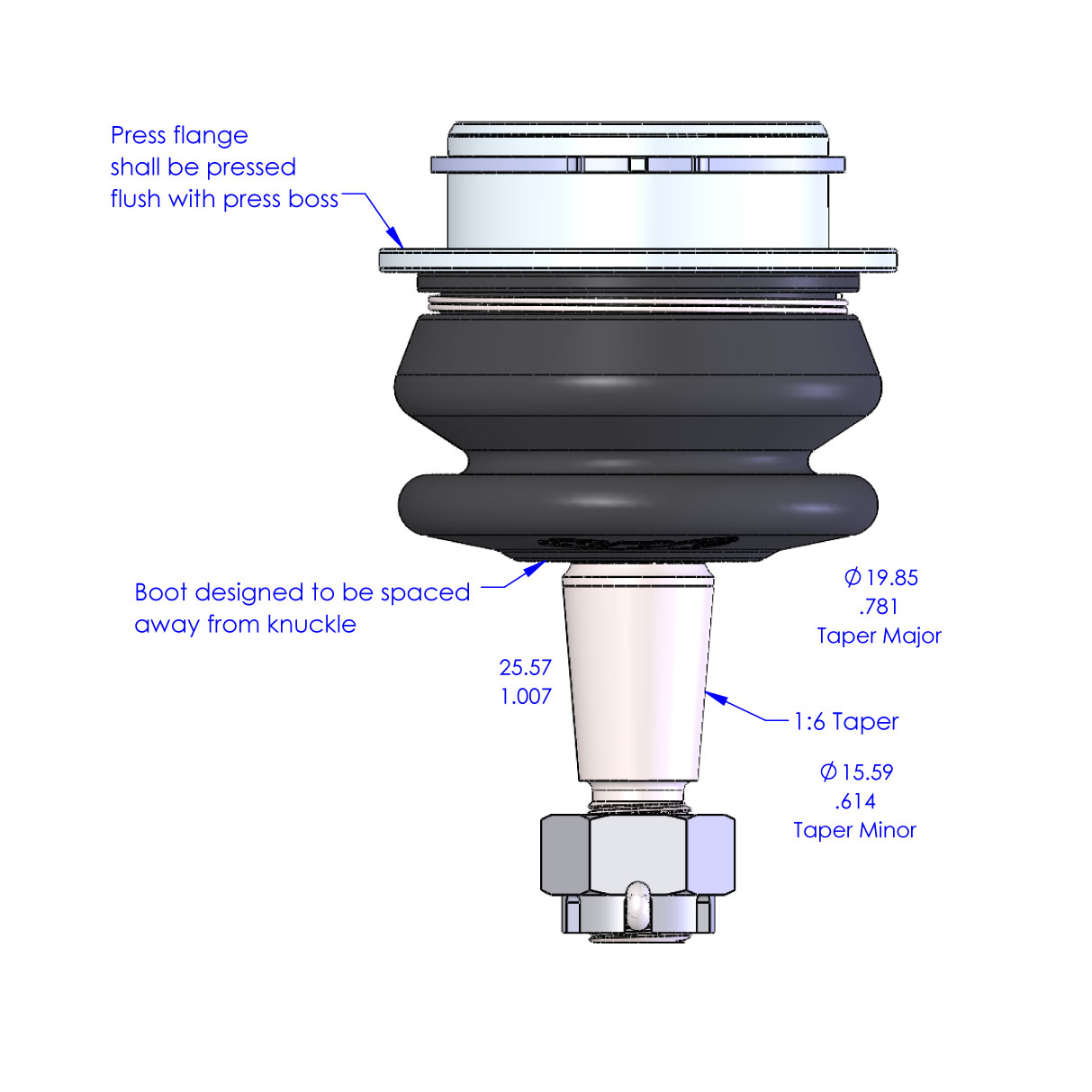

This is not an OE replacement ball joint. These are available for custom control arm projects featuring knuckles from 2004-20 Ford F150 applications as well as Ford Expedition and Lincoln Navigator. Get the best ball joint available for custom front upper control arm projects with these modern architecture, maintenance-free builder series ball joints. Designed, engineered and assembled in Colorado, these next generation ball joints are the result of a relentless pursuit of product performance and longevity. .STP files and technical sheets are available so these maintenance-free ball joints can be integrated into a custom fab job or aftermarket design and production of upper control arms.

1. Fully sealed boot to keep grease in and contaminants out for a maintenance-free joint
2. One piece polymer race tests like OE and provides low & smooth turning torque
3. Forged ball stud is finished with E-Nickel coating for superior corrosion protection & smooth operation
4. Oversized ball generates 80° of articulation with a 25% increase in neck cross section vs. OE for added strength
5. Modern grease formula ensures quiet and smooth operation with reduced wear for extended life
